• 2,165

    Maximum Range

  • 451

    Maximum Cruise Speed

  • 10

    Maximum Passengers

  • 6,950

    Useful Load

  • 3,410

    Takeoff Distance

Redefined Versatility

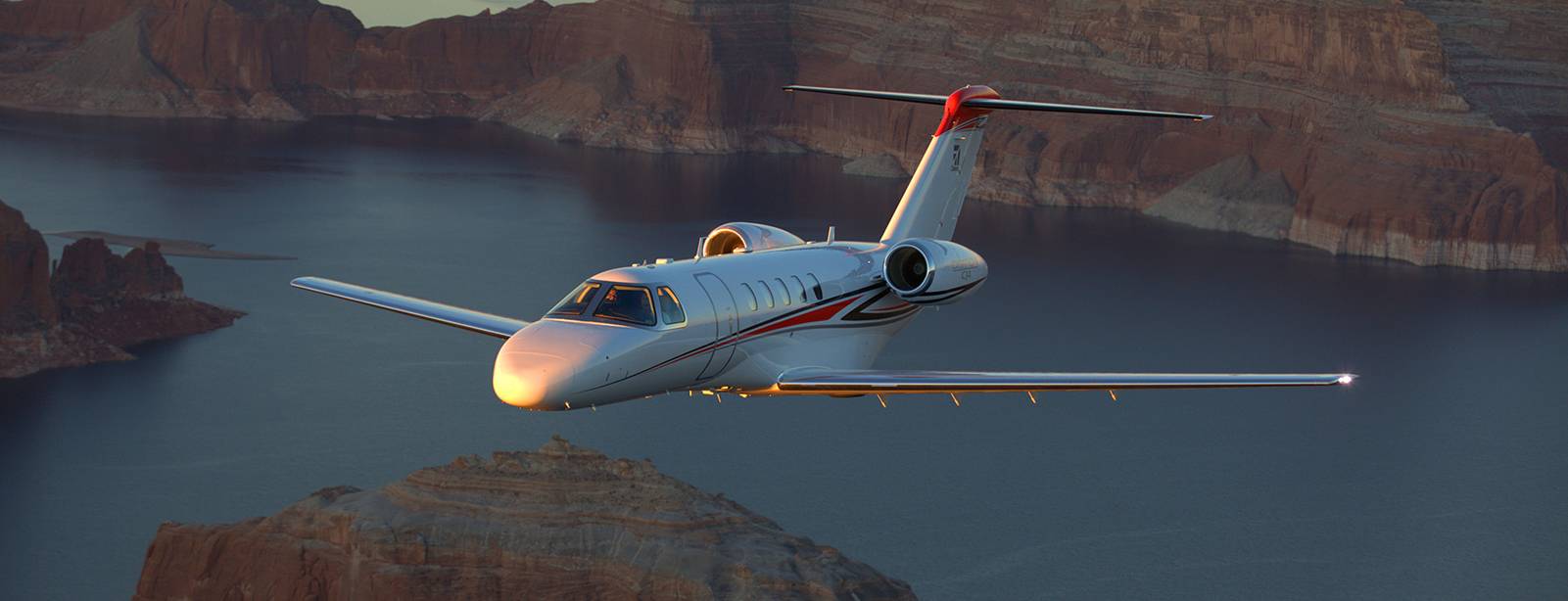

The Citation® CJ4® jet redefines versatility for a light jet. The CJ4 has added speed, range and cabin size over its predecessor without incurring midsize jet operating costs. The Collins Pro Line 21™ avionics suite allows a single pilot to effectively operate the CJ4. Features such as single point refueling, an externally serviceable lavatory and excellent range deliver what crew and cabin passengers appreciate.




Interior

Productivity In the Sky

YOUR STYLE, YOUR FLIGHT

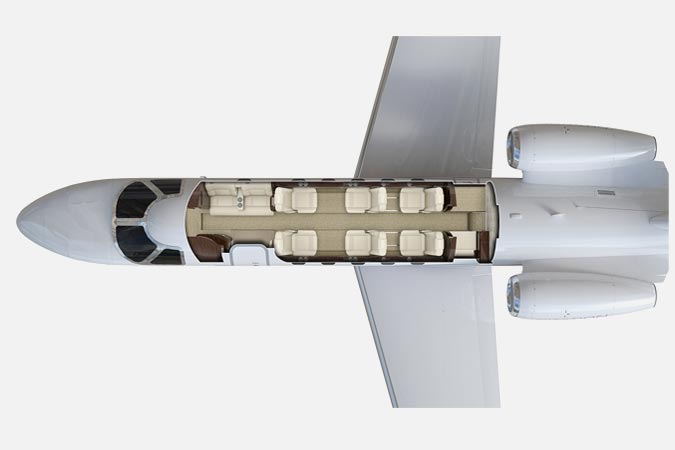

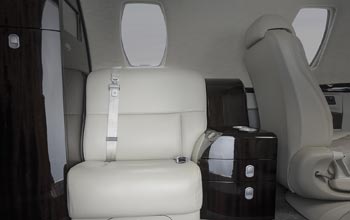

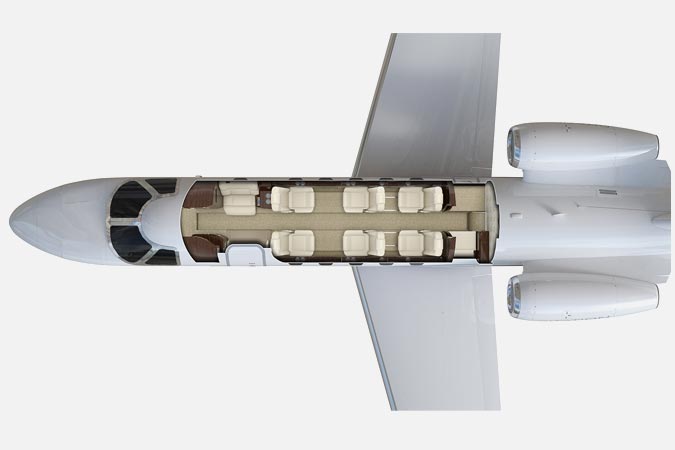

Six deep-cushioned, wide leather seats track in three directions and can be configured to fully recline for long, comfortable trips.

PASSENGER-CENTERED TECHNOLOGY

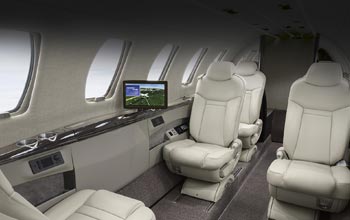

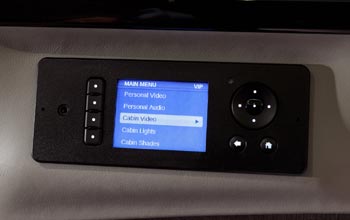

With Wi-Fi and high definition technology, the Rockwell Collins Venue™ High-Definition Integrated Cabin Management System distributes entertainment and productivity in flight.

CABIN ENVIRONMENT

The CJ4 features separate temperature-control zones for the cockpit and cabin.



Avionics

Eyes On The Mission

The CJ4’s avionics suite combines category-leading technology with ergonomic enhancements and extreme user friendliness.

Intelligent, Convenient Controls

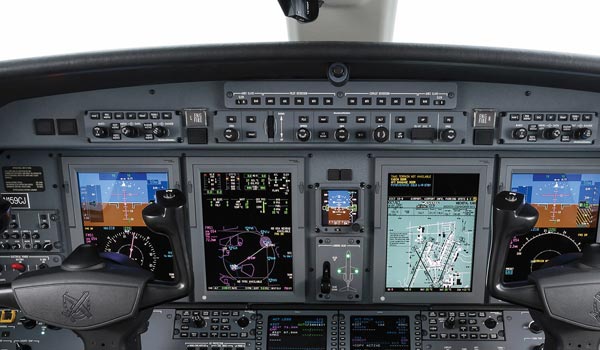

The pilot-friendly flight deck features category-leading technology and ergonomic enhancements centered around the Rockwell Collins Pro Line 21™ avionics suite.

Navigating Weather

Standard CJ4 capability includes enhanced weather tracking via the Rockwell Collins RTA-4112 MultiScan™ Weather Radar system. Pilots can use this solid-state radar system to detect weather systems and navigate around them to minimize turbulence. Short, mid and long-range weather detection is included with multiple radar scans at preselected tilt angles. At any altitude or range, the system displays an optimized weather picture for the pilot.





Standard Features

  • Dual Primary Flight Displays
  • Dual Multifunction Displays

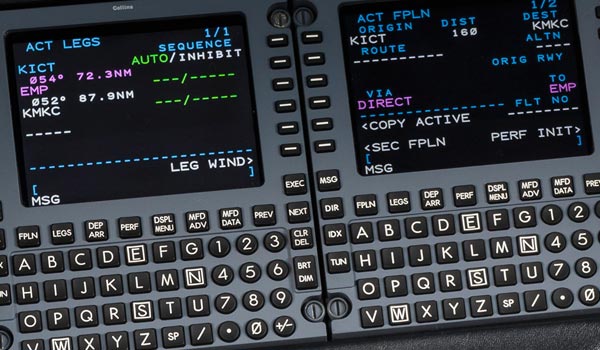

  • Single Flight Management System with GPS Navigation
  • TCAS II
  • Integrated Crew Alerting System
  • Integrated Electronic Checklists
  • Dual Attitude Heading Reference Systems
  • XM Broadcast Graphical Weather
  • MultiScan Weather Radar
  • Mark VIII Enhanced Ground Proximity Warning System

Optional Avionics Include

  • Dual Flight Management System
  • High-Frequency Radio with SELCAL
  • ACARS Data Link
  • Flight Data Recorder


Specifications

Dimensions

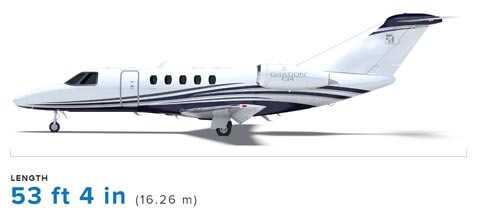

Length 53 ft 4 in (16.26 m)
Height 15 ft 5 in (4.69 m)

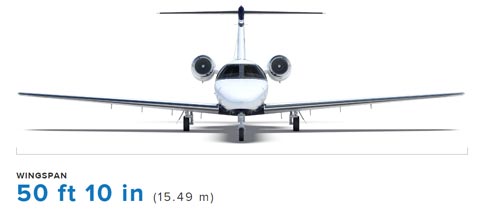

Wingspan 50 ft 10 in (15.49 m)
Wing Area 330 sq ft (30.66 sq m)
Wing Sweep 12.5 degrees
Wheelbase 21 ft 2 in (6.45 m)
Tread 12 ft 4 in (3.76 m)
Cabin Interior
Height 57 in (1.45 m)
Width 58 in (1.47 m)
Length 17 ft 4 in (5.28 m)
Maximum Passengers 10
Single Pilot Certified Yes
Baggage Capacity
Weight 1,040 lb (471.7 kg)
Volume 77 cu ft (2.18 cu m)
Weights
Maximum Ramp Weight 17,230 lb (7,815 kg)
Maximum Takeoff Weight 17,110 lb (7,761 kg)
Maximum Landing Weight 15,660 lb (7,103 kg)
Maximum Zero Fuel Weight 12,500 lb (5,670 kg)
Usable Fuel Weight 5,828 lb (2,644 kg)
Usable Fuel Volume 870 gal (3,293 l)
Basic Operating Weight 10,280 lb (4,663 kg)
Useful Load 6,950 lb (3,152 kg)
Maximum Payload 2,220 lb (1,007 kg)
Full Fuel Payload 1,122 lb (509 kg)
Performance
Maximum Cruise Speed 451 ktas (835 km/h)
Maximum Range 2,165 nm (4,010 km)
Takeoff Field Length 3,410 ft (1,039 m)
Landing Distance 2,940 ft (896 m)
Maximum Operating Altitude 45,000 ft (13,716 m)
Maximum Climb Rate 3,854 fpm (1,175 mpm)
Maximum Limit Speed 0.77 Mach (0.77 Mach)

Powerplant
Manufacturer Williams International
Model FJ44-4A
Thrust 3,621 lb (16.11 kN)
