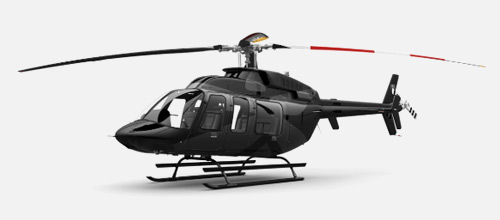

The Bell 407GXi incorporates new avionics, an upgraded engine, and new executive interior design options. With Garmin’s G1000H® NXi Integrated Flight Deck pilots benefit from high-definition displays and faster processors that provide increased brightness and clarity, faster startup and map rendering as well as an option for connectivity to tablets and smartphones. The Rolls-Royce M250-C47E/4 dual-channel FADEC turbine engine delivers exceptional hot and high performance, fuel efficiency and the ability to cruise at 133 kts/246 km/h. Newly designed executive configuration options bring a modernized look and passenger experience to the five-seat club cabin.

  • 2,550

    lbs. Useful Load (IGW)

  • 140

    kts Max Speed

  • 6

    Passengers



Missions

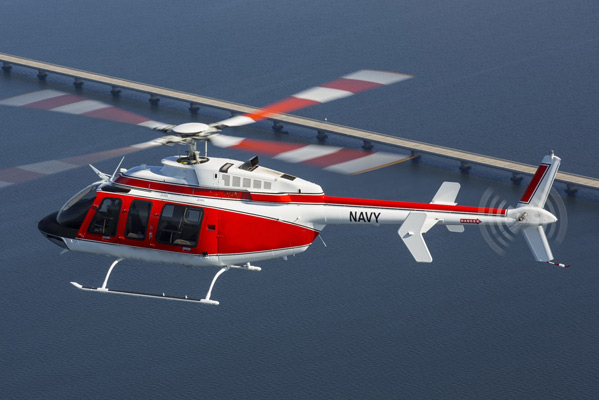

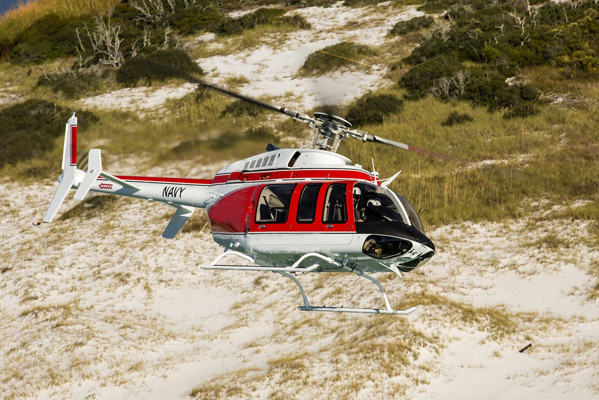

Supporting the U.S. Navy for more than 35 years with the TH-57 Sea Ranger, Bell is positioned to offer exceptional value, modern avionics, Full Authority Digital Engine Controls and proven reliability with the 407GXi.

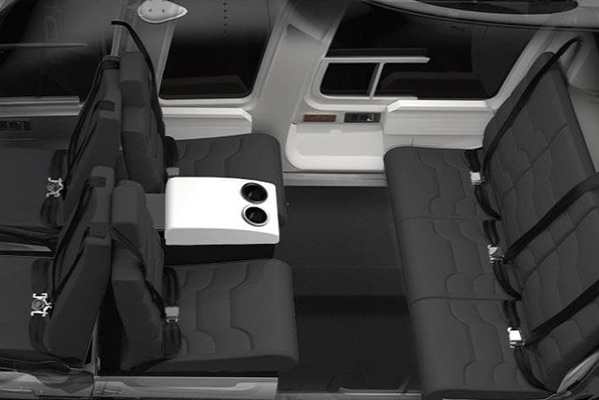

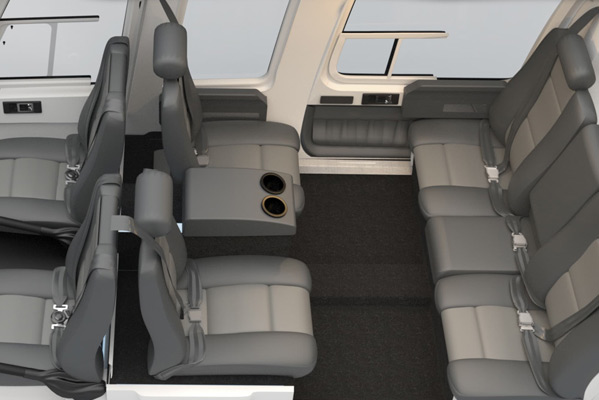

407GXi Executive interior options bring a modernized look and passenger experience to the five-seat club cabin. Interiors are available in grey, blue & grey, black and tan two-tone leather with 100% wool cut pile carpet and Executive sound proofing.

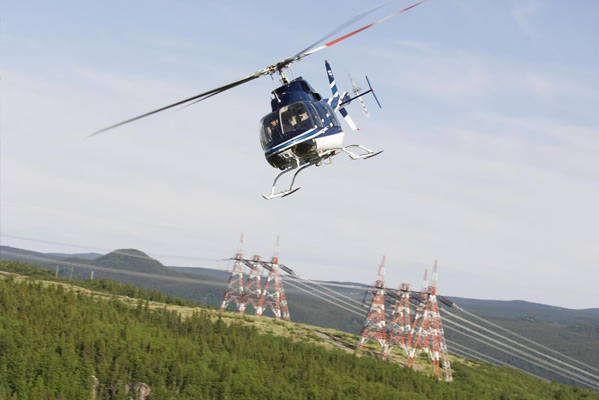

The Bell 407GXi’s airframe, dynamic components and state of the art Garmin G1000H NXi flight deck contribute to an outstanding record of reliability and low, predictable operating costs delivering value to operators in the energy segment every day.

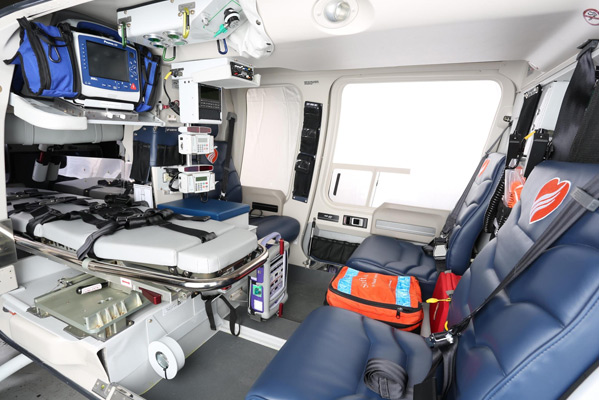

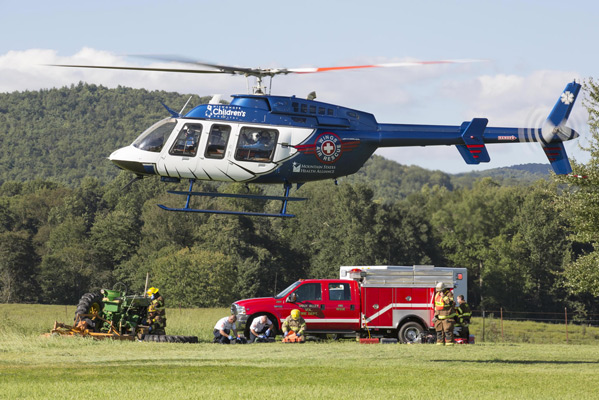

Patient loading is accomplished with ease thanks to a 61 in/155 cm bi-fold door, large windows provide excellent ambient lighting for the crew to work while seated at the patient’s head, and the four-bladed composite rotor system offers a smooth ride - all essential to your mission.

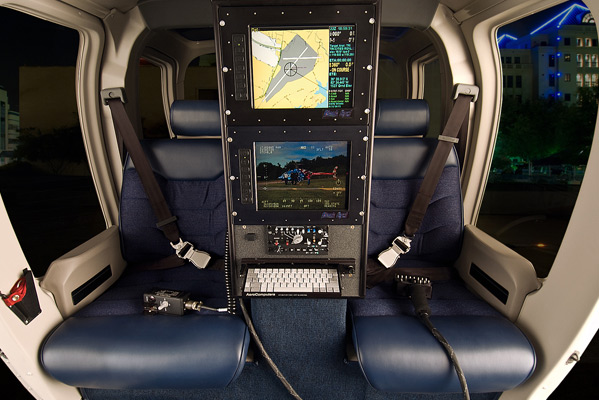

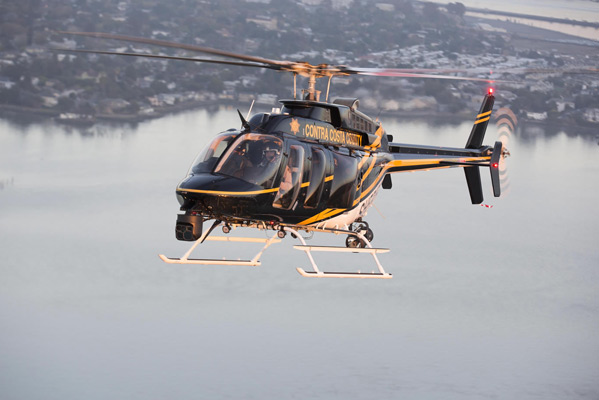

The 407GXi provides enhanced situational awareness and the equipment necessary to meet your mission. The 407GXi can be equipped for firefighting, command and control, tactical insertion, or rescue.

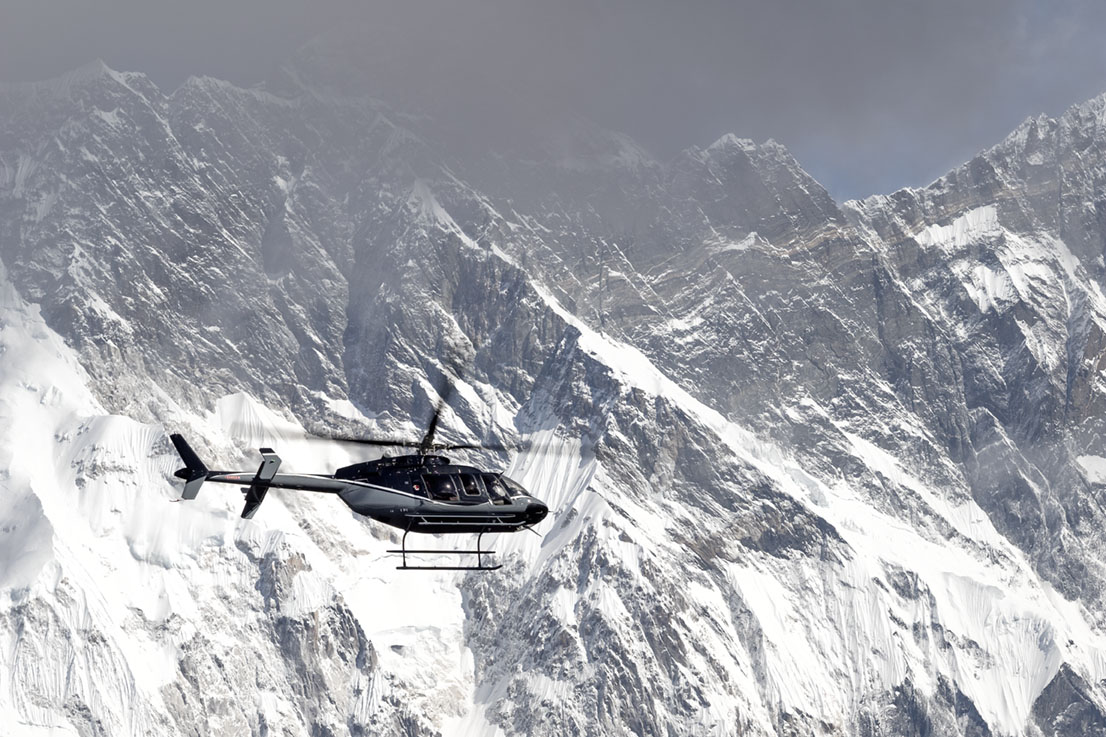

Upgraded Engine Performance

The Bell 407GXi is outfitted with the new Rolls-Royce M250-C47E/4 dual-channel FADEC turbine engine delivering exceptional hot and high performance, fuel efficiency and the ability to cruise at 133 kts/246 km/h.

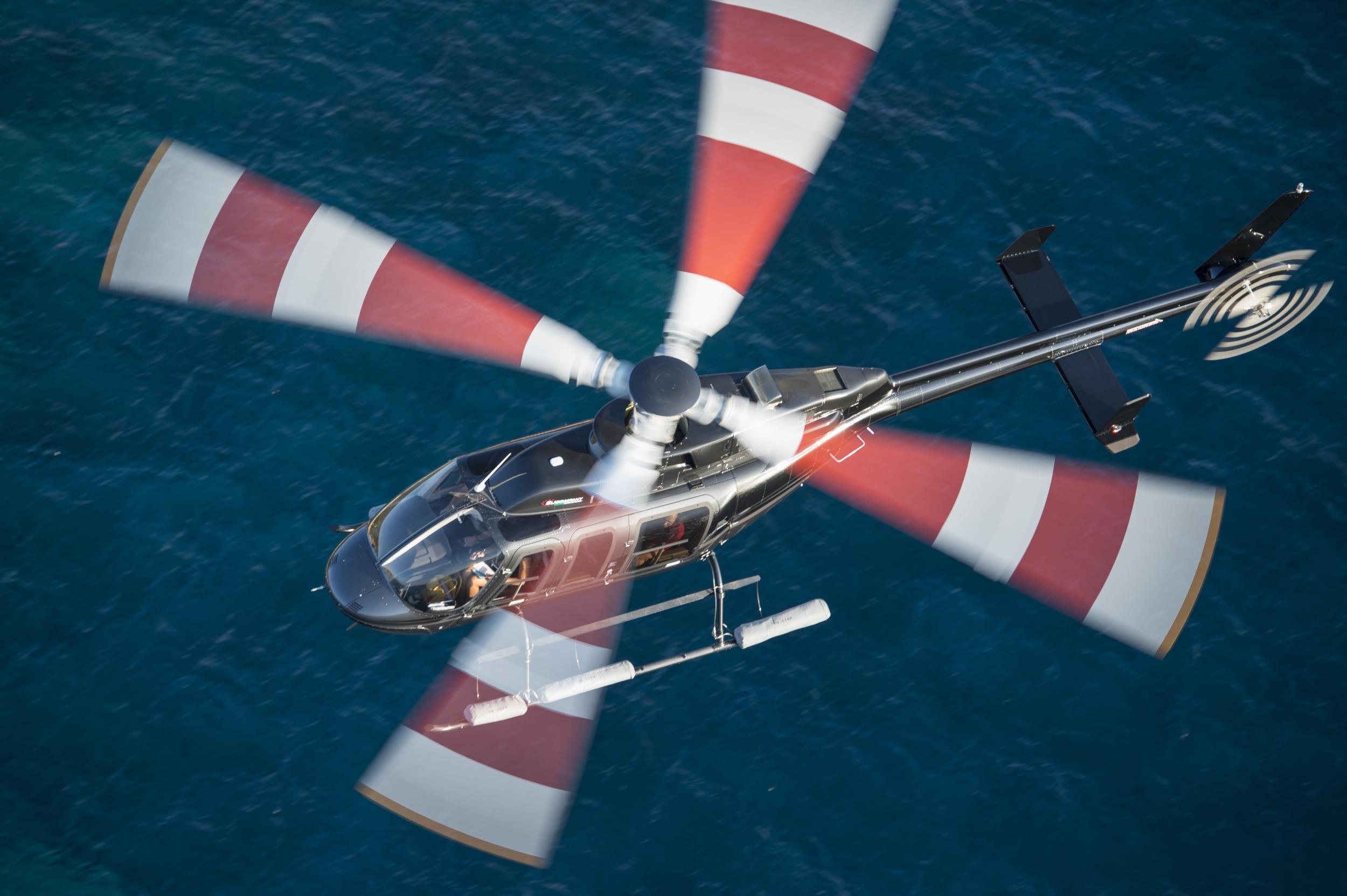

Available kits include but are not limited to:

? New Wireless Connectivity ? New Wireless Connectivity ? New 3,100 lb Cargo Hook ? New Forsight MX HUMS & RTB ? New Executive Interior Designs ? 2-Axis Autopilot ? Inlet Barrier Filter

Safety

The Bell 407GXi is equipped with a variety of safety features including: a FADEC-controlled engine with automatic relight, superb autorotation characteristics, structural bulkheads protecting both passenger and crew, rupture-resistant fuel cells, collective-mounted throttle, and wire strike protection. With the Garmin G1000H®NXi, safety is enhanced with reduced pilot workload and engine exceedance monitoring.

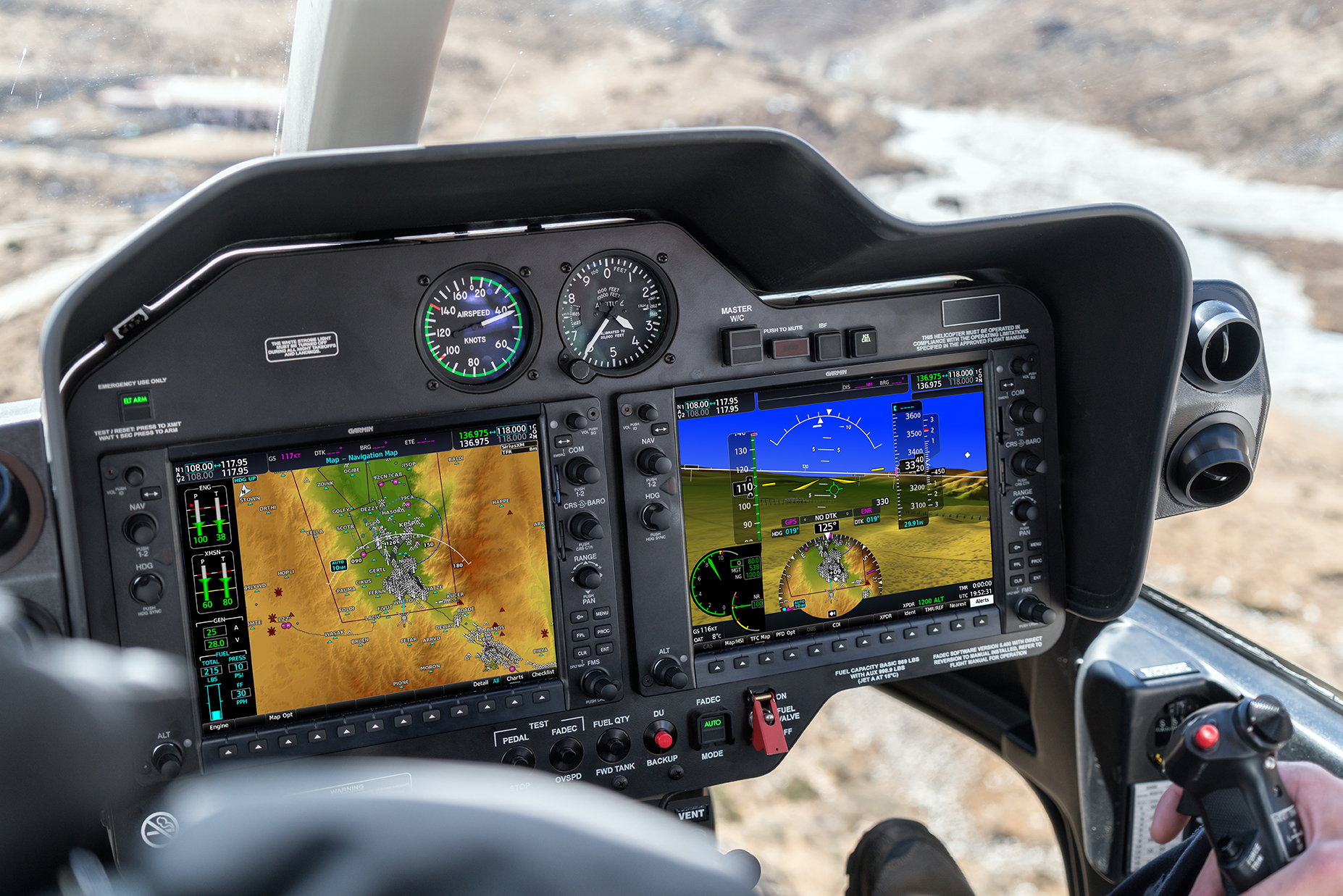

State-of-The-Art Avionics

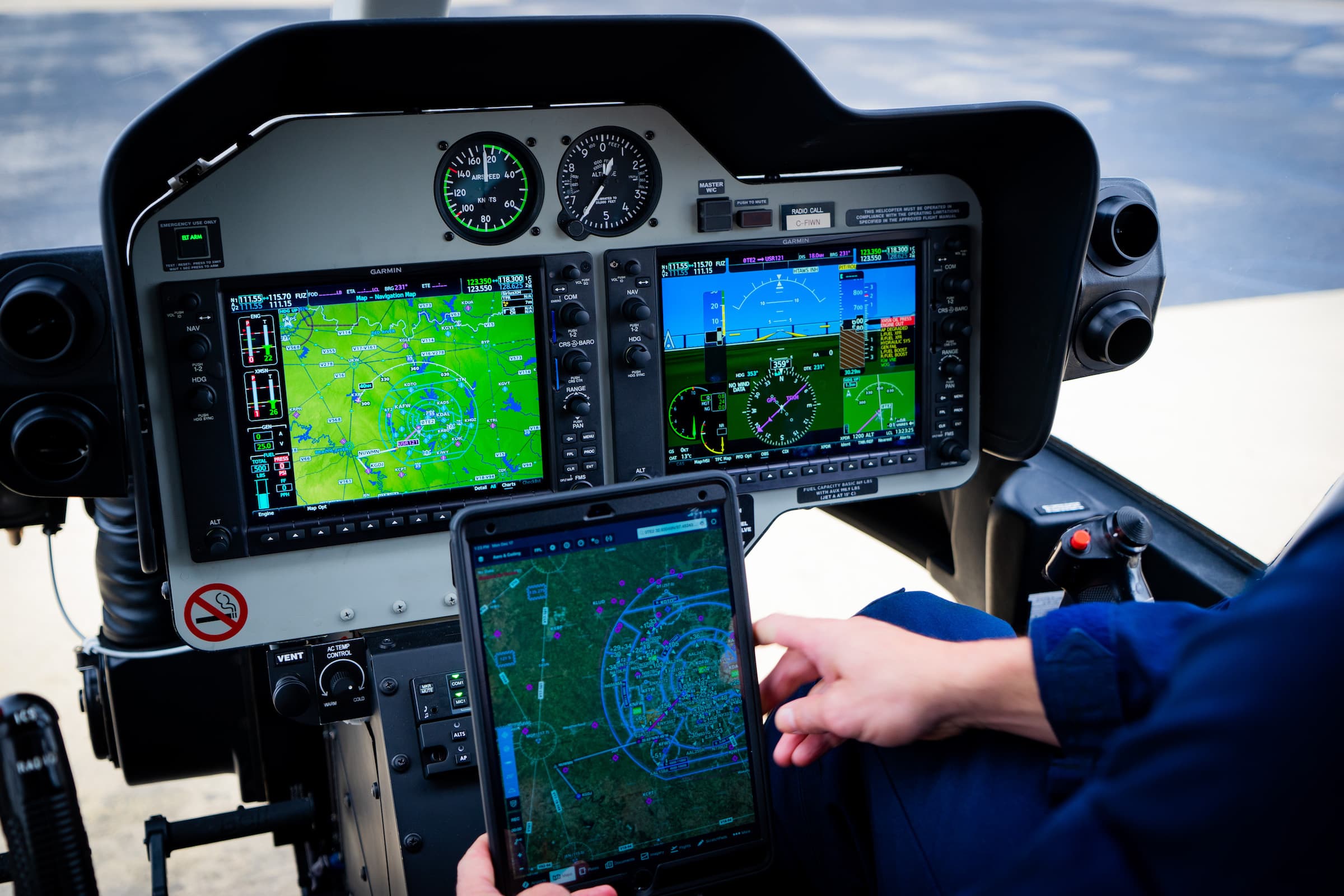

Garmin’s G1000H®NXi Integrated Flight Deck, complete with high-definition displays and faster processors offers increased brightness and clarity, faster startup and map rendering as well as connectivity to tablets and smartphones. Upgrades to the Bell 407GXi include a dual-channel FADEC engine with full automatic relight, and enhanced situational awareness through the G1000H®NXi.

Flight Stream 510

The Flight Stream 510 (optional) allows pilots to upload flight plans and databases wirelessly from a smart device using the Garmin Pilot or Foreflight apps.



Specifications

SPEEDS AT MAX GROSS WEIGHT
VNE 140 kts 259 km/h
Max Cruise 133 kts 246 km/h
Range at VLRC* 4.0 hrs 624 km
Max Endurance* (No reserves, 60 KIAS)   > 3.9+ hrs
CAPACITIES
Standard Seating 1+6
Maximum Seating   1+6
Standard Fuel 127.8 US gal 483.8 liters
Aux Fuel 19 US gal 71.9 liters
Cabin Volume** 85 ft³ 2.4 m³
Aft (Baggage) Compartment Volume 16 ft³ 0.5 m³
WEIGHTS
Empty Weight (Base 407GXi Aircraft) 2,700 lbs 1,224 kg
Max Gross Weight (Internal, Standard) 5,000 lbs 2,268 kg
Max Gross Weight (Internal, Optional) 5,250 lbs 2,381 kg
Max Gross Weight (External Load) 6,000 lbs 2,722 kg
Useful Load (Internal, Standard, Base 407GXi) 2,300 lbs 1,043 kg
Useful Load (Internal, Optional, Base 407GXi) 2,550 lbs 1,156 kg
Cargo Hook Capacity 3,100 lbs 1,406 kg
